DEPTH TYPE OIL FILTRATION SYSTEMS
Click on the oil type below

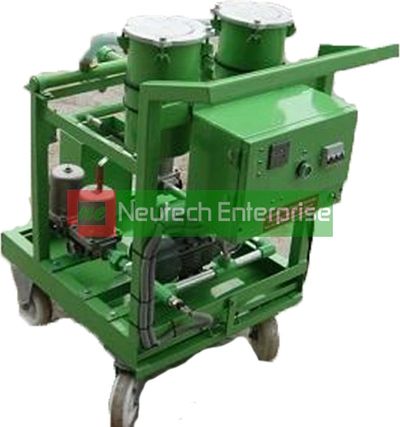

HYDRAULIC OIL CLEANING MACHINE
Cleaning capacity < 1 Micron | Water Removal <= 100 PPM | Cleaning rate - 10LPM to 150LPM
Power Source - 3 Phase 440 V AC | Complete Portable System
- Removes contaminant particles down to less than one micron
- Removes water content from oil up to 100 ppm
- Reduces component wear and tear
- Removes solid contamination like dust, dirt, metals and carbon as well as soft contamination (like sludge, varnish, lacquer)
- Capable of removing water and the oxidized lower molecular weight products of oil. Removal of the lower molecular weight products, ensures that there is no formation of sludge, varnish and lacquer
- It prevents oil from getting thermally degraded by releasing free air from oil. It not only removes but also prevents generation of contamination

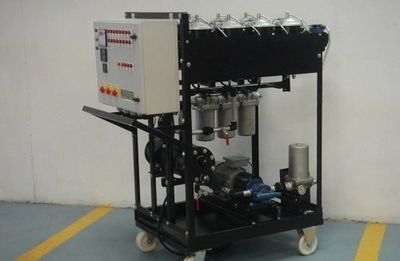

TURBINE OIL CLEANING MACHINE
Cleaning capacity < 1 Micron | Water Removal <= 100 PPM | Cleaning rate - 10LPM to 150LPM
Power Source - 3 Phase 440 V AC | Complete Portable System
- Removes contamination particles down to less than one micron
- Removes water content from oil up to 100 PPM
- The fiber glass depth filter removes insoluble contamination like sludge, varnish and particles smaller than a micron by absorption i.e. (attracting and trapping the contamination in its filtering medium) when oil is continuously cycled through it
- These systems are designed to remove contamination in stages and the continuous cycling of oil through it ensures that the smallest size contaminants are removed to provide super-clean oil in the parent machine.
- Installing these machines on a turbine oil tank to continuously clean oil would help in maintaining the cleanliness level of oil at NAS 5 at all times.
- These systems should be permanently installed on oil tanks, which supply oil to the turbine governing system
GEAR OIL CLEANING MACHINE
Cleaning capacity up to 5 Micron | Water Removal feature| Cleaning rate - up to 2000LPH
Power Source - 3 Phase 440 V AC | Complete Portable System
- This machine is manufactured using high-grade components & spare parts, these products are used to clean high viscosity lubricating oils.
- These machines are available with heaters, which help in reducing the viscosity of oil by heating the same in a controlled environment before passing it through a series of fiber glass depth filters.
- Gear oils can be cleaned down to NAS 6 / NAS 7 with our machines.
- Our High Viscosity Oil Cleaning Machines remove Solid contamination (like dust, dirt, metals, carbon), Soft contamination (like sludge, varnish, lacquer) and Free or Emulsified Water
COMPRESSOR OIL CLEANING MACHINE
Cleaning capacity < 1 Micron | Water Removal <= 100 PPM | Cleaning rate - 10LPM to 150LPM
Power Source - 3 Phase 440 V AC | Complete Portable System
- Removes contaminant particles down to less than one micron
- Removes water content from oil up to 100 ppm
- The fiber glass depth filter removes insoluble contamination like sludge, varnish and particles smaller than a micron by absorption i.e. (attracting and trapping the contamination in its filtering medium) when oil is continuously cycled through it
- These systems are designed to remove contamination in stages and the continuous cycling of oil through it ensures that the smallest size contaminants are removed to provide super-clean oil in the parent machine
- Applications : Fertilizer Companies, Cold Storage, Petrochemicals and more
WATER GLYCOL CLEANING MACHINE
Cleaning capacity < 1 Micron | Moisture Removal by Absorption
Cleaning rate - 10LPM to 80LPM | NAS Cleanliness Level - 5 -6 | Complete Portable System
- Removes contaminant particles down to less than one micron
- Our Water Glycol Cleaning Machine are manufactured using optimum-grade components and spare parts so that it is in tandem with international quality standards. Moreover, these machines can be customized on the basis of the specifications detailed by customers.
- 149 Micron washable suction filter outside the oil tank with large surface area and magnet powerful enough to attract smallest particles
- Special 10 micron filters to clean oil from 1200 liters per hour and above
- This machine can clean oil down to NAS 5/6
- Machine can clean oil less than a micron from 140 to 160 liters per hour and above
- Smaller particles are removed by continuous circulation through the depth filters
FIRE RESISTANT HYDRAULIC FLUID CLEANER
Cleaning capacity < 1 Micron | Water Removal <= 100 PPM | Cleaning rate - 10LPM to 150LPM
Power Source - 3 Phase 440 V AC | NAS Cleanliness Level - 5 -6 | Complete Portable System
- Fire Resistant Hydraulic Fluid (FRHF) Cleaning Machine can ensure a fluid cleanliness value of NAS 4/ NAS 5 at all times
- Fire Resistant Hydraulic Fluid Cleaning Machine is also known as EHC Oil Filtration Machine or Control Oil Purification Machine.
- By keeping the FRHF free from water and contamination down to less than a micron, it protects fluid which can then continue to perform its essential functions for a very long time
- FRHF Purification machine is constructed of Viton rubber seals, Stainless steel purifier bodies, and pipelines

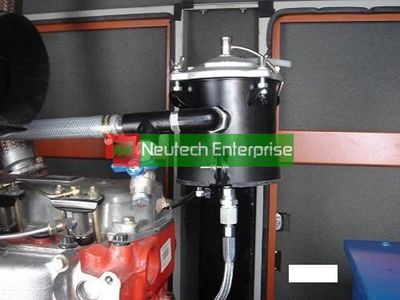

ENGINE OIL / LUBE OIL CLEANER
Solid Contamination Removal | Soft Contamination Removal | Free Water Removal
- It has ability to remove solid contaminants down to one micron and liquid contaminants, like lighter fractions of unburnt fuel and water from the engine oil while the oil is still in use helps to protect the essential additives and chemicals of the oil.
- An engine oil which is free from harmful contaminants and has its useful additives over the minimum prescribed limit can be used for a very long time.
- Solid contamination removal (like dust, dirt, metals, carbon) &
- Soft contamination removal (like sludge, varnish, lacquer)
- Engine oils are used in engines of trucks, buses, generators, heavy earth moving equipment etc.
- Engine oil cleaning systems increases engine oil life by more than 10 times, double the engine life, reduces fuel consumption by almost 8%
- It can help to increase the life of engine oils by more than 10 times by keeping the oils super clean. It can be installed as a by pass oil cleaning unit on any internal combustion engine.
DEHYDRATION SYSTEM
Grade Automatic | Design - Standard / Customized | Oil & Vacuum Dehydration
- Dehydration Chamber is recommended to be used where the oil sump has high water content and needs to be removed quickly. It is also recommended to be used where the turbine / FRHF/ hydraulic oil sump has water content in free and emulsified state and the oil has to be dehydrated in
- This machine works on the principle of Vacuum Dehydration. Fluid taken from the reservoir is made to flow through the Pre heater. It is heated to 50 degrees centigrade. From the Pre-heater it is supplied to a specially designed chamber at a regulated flow rate. A Vacuum pump creates a vacuum of maximum 700 torr, to reduce the boiling point of water.
- The fluid is made to flow down the heated chamber walls in form of a thin film. The thin film of oil ensures that water is now on the surface. The creation of this thin film helps to evaporate water very quickly without heating the oil further. Continuous operation of the vacuum pump ensures removal of evaporated moisture out of the chamber which can be either vented out or collected for disposal.
